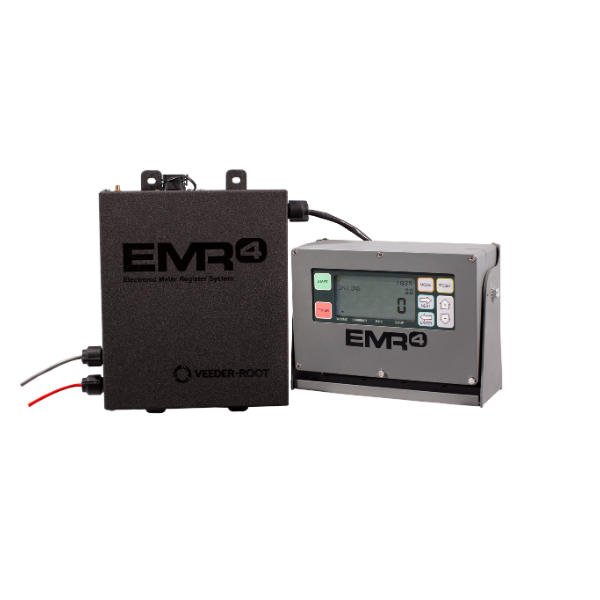

EMR4 Electronic Meter Register

EMR4 Electronic Meter Register for Fuel Delivery Management

Automate fuel delivery recording with the EMR4 Electronic Meter Register. Designed as a direct replacement for the EMR3, it captures transaction data and supports integration with metering, pump control and back-office systems.

Automatic data capture helps reduce manual entry errors and missing delivery records. Password protection and optional external authorisation controls help restrict dispensing to authorised users.

Key features and benefits

• Flexible integration: RS-232/RS-485 communications, programmable relays and pulse outputs
• Delivery control: Currency and volume presets, temperature compensation and remote-control commands
• Dual-head operation: Two register heads can operate simultaneously through one IB box
• Clear display: Nitrogen-purged, anti-fog display with bright white LED backlighting
• Transaction storage: Non-volatile memory holds hundreds of delivery records
• Customisable tickets: Multiple products on one ticket, multilingual support and editable text labels
• Straightforward maintenance: USB software updates and removable wiring connectors
• Calibration options: Single-point or multipoint calibration

Operating capabilities

The display head is rated for −40°C to +60°C. Each head provides three pulse outputs with selectable voltage, and a network can link up to 32 register heads. Remote emergency start-stop interfaces support delivery control.

The range includes UL, ATEX and IECEx approvals, alongside international weights and measures approvals for applicable configurations.

EMR3 to EMR4 upgrade: Contact us to discuss replacement options and any available upgrade discount.

Client Testimonial

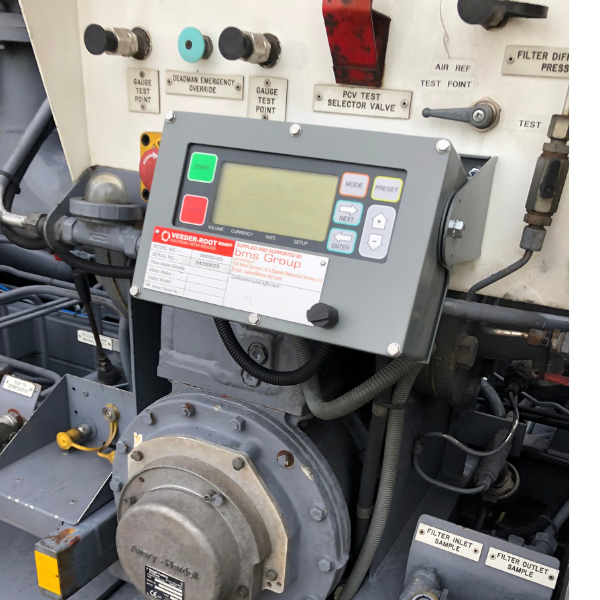

“A huge thank you to the BMS Group technical team for successfully upgrading 12 hydrant refuelling vehicle meters from EMR3s to EMR4s in just five days during a busy operational period at the North Air site in Manchester.

The professionalism, dedication, and expertise shown by the engineers throughout were superb. Their ability to deliver such a high standard of workmanship while maintaining efficiency and minimising disruption was truly impressive. A fantastic achievement by everyone involved, and thanks again for the excellent support.”

Craig Glover, Operations Manager

Our certified engineers provide nationwide installation, calibration and ongoing maintenance for selected products in our range.
Book installation with your order and receive 50% off your first post-installation service visit. Speak to an engineer for details. Call 0345 230 7887 or email sales@bms-ltd.com.
